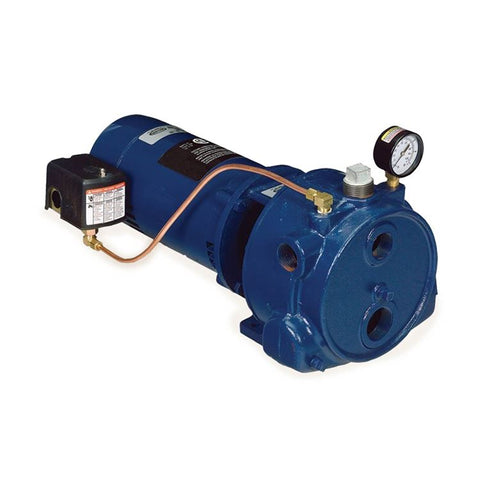

RM2 Series
Features:
•Heavy-duty cast iron case and bronze impeller ensure optimum durability
•Thermoplastic diffuser is molded for efficiency and dependability
•Screw-in injector for easy conversion from shallow to deep well installation
•Shaft coupling designed for easy removal of pump motor
•Mechanical shaft seal ensures leak-proof fit and continuous water lubrication
•High service factor 56C-frame motor for maximum performance
•Hardware kit allows for versatility of installation and includes pressure gauge, plugs, shallow well injector and bypass plug
•Adjustable pressure switch is factory-installed at 30/50 psi
•Connections:
1.25” FNPT suction
1” FNPT discharge
1” FNPT drive line
•Maximum temperature of 140 °F
1/2 hp single phase
